• FR-PVC
  • LSZH
  • ECCS
  • Double Jacket

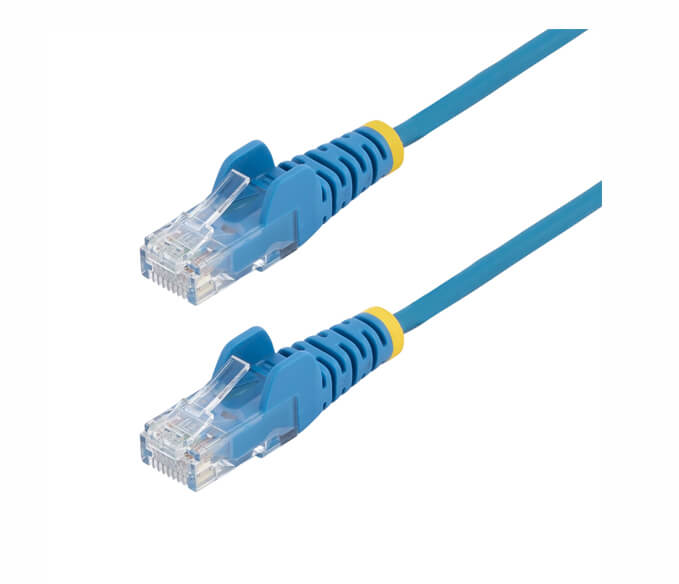

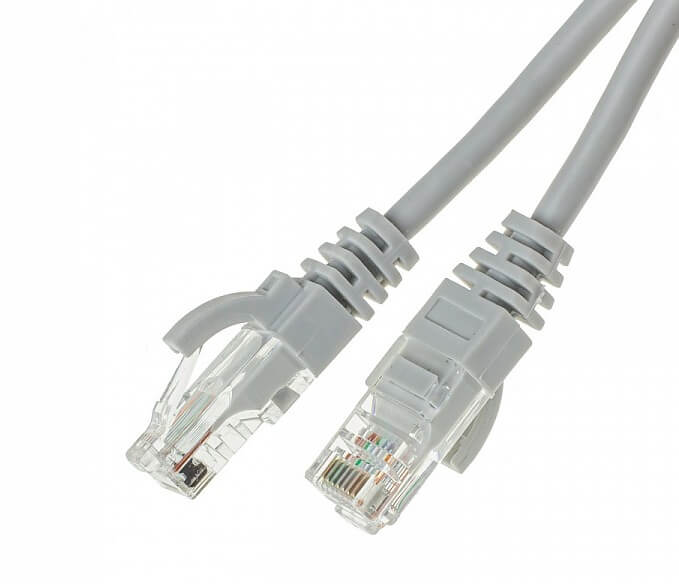

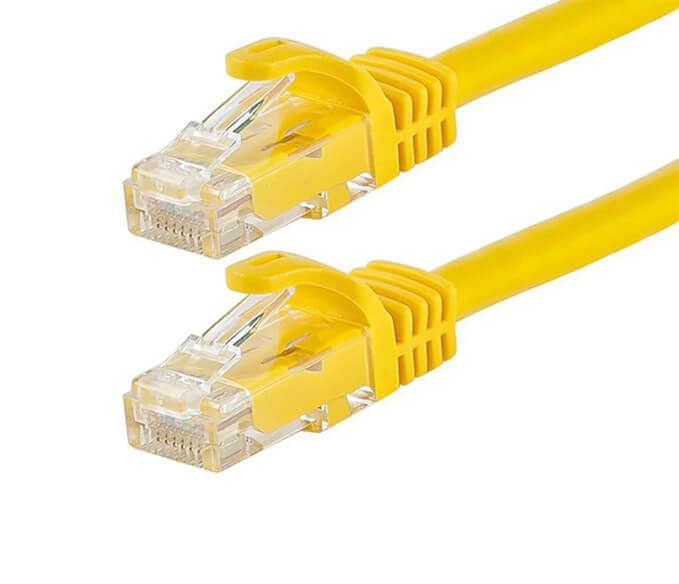

  • Cat6/Cat6A UTP patch cord

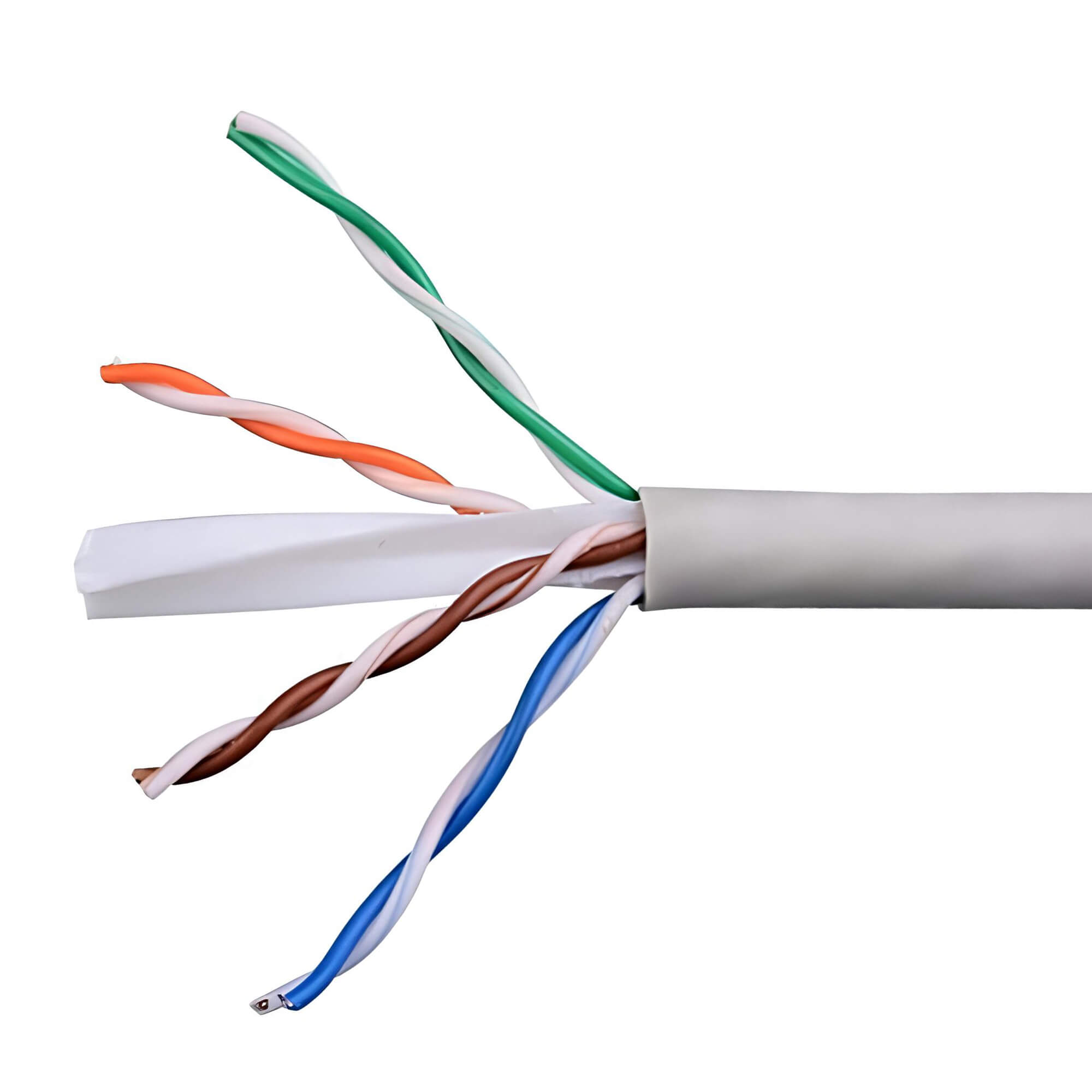

CAT6 23AWG FR-PVC

Part code & Specification
Model No: ZY60CCG3F0135
Type of cable/Sheath: FR-PVC
Core Diameter mm: 1.03 ± 0.05 mm
Conductor Diameter: 0.55 ± 0.03 mm
Length: 305 mtrs
Category: Cat6
Outer Jacket Color: Gray
Insulation: PE / Polyolefin, Ø 0.90 mm
Fire Rating: IEC 60332-1
CAT6 23AWG FR-PVC

  • Zyxel Category 6 FR-PVC cables shall meet ANSI/TIA-568-C.2. Category 6, ISO 11801 Class E channel standards and RoHS Directive 2002/95/EC/Compliant. The conductors shall be 23 AWG construction with PE/FEP/Polyolefin insulation. The copper conductors shall be twisted in pairs and covered by a low smoke, zero halogen (LSZH) jacket or a flame-retardant PVC (FR PVC) jacket. These U/UTP cables are designed to support high speed 1000BASE-T networks and are backward compatible with 10/100BASE-T networks. The cable is packed in 305 mtr Reel in a recyclable corrugated box.

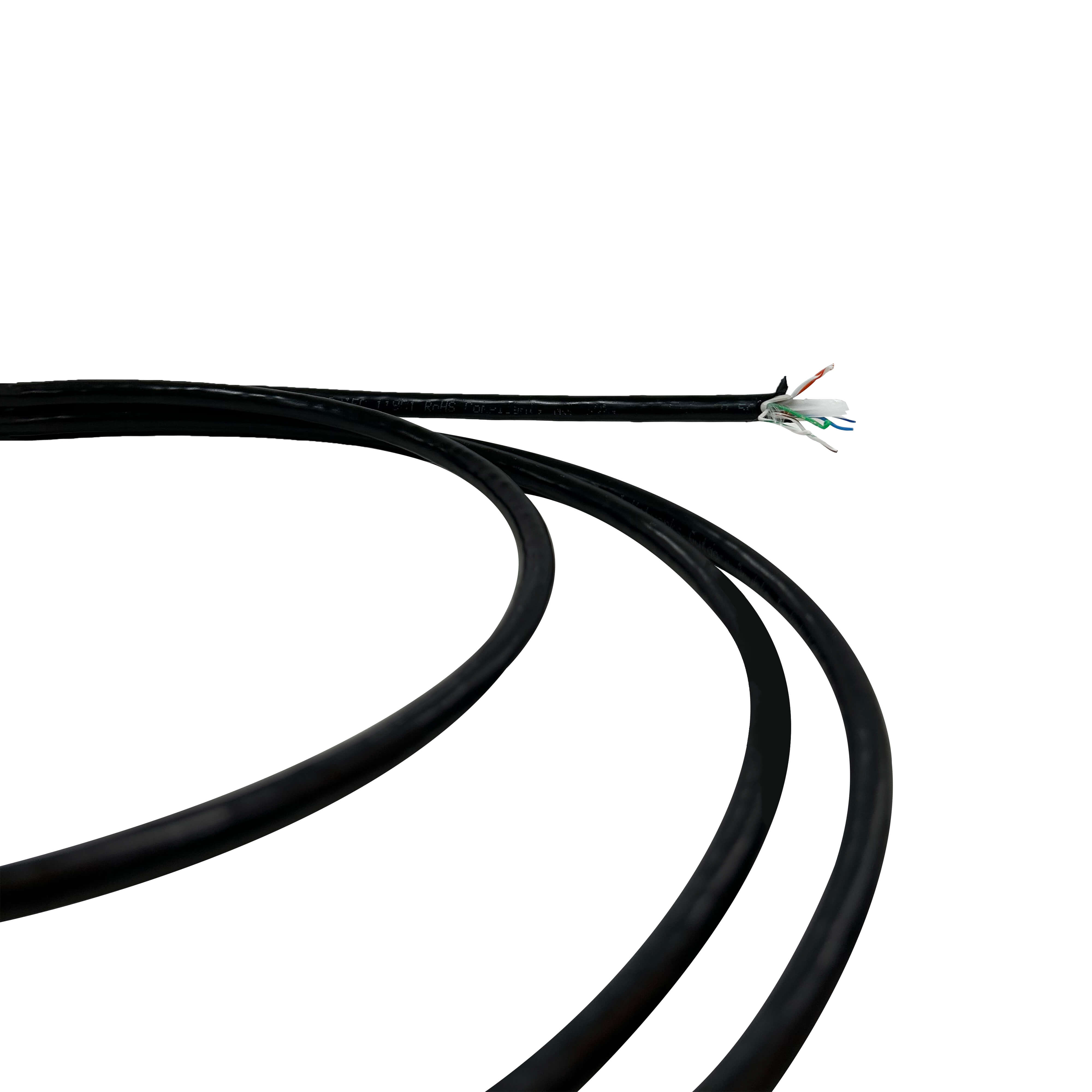

CAT6 24AWG Double Jacket Cable 305 mtrs

CAT6 24AWG Double Jacket Cable 305 mtrs

Part code & Specification
Model No: ZY60CCG4F0135J2
Type of cable/Sheath: U-UTP/FR-PVC
Conductor Diameter: Annealed Bare copper wire Ø 0.50 mm ± 0.015 mm
Core Diameter mm: 0.9 ± 0.05 mm.
Inner Sheath: FR-PVC
Length: 305 mtr
Insulation: PE
Category: Cat6
Pair Separator: PE Cross - Member(+) Separator
Fire Rating: PVC : IEC 60332-1
Protection: High density double jacket for protection

  • Zyxel Category 6 Outdoor Double Jacket cable is ideal for all sorts of outdoor locations. The cable gives protection from harsh environment conditions and rodent attacks through its unique double jacketed cable construction. Performance of cable is tested up to 250 Mhz. The cable has Double sheath construction, UV Resistant Outer Sheath. Anti-rodent Outer jacket -Suitable for outdoor installation.
