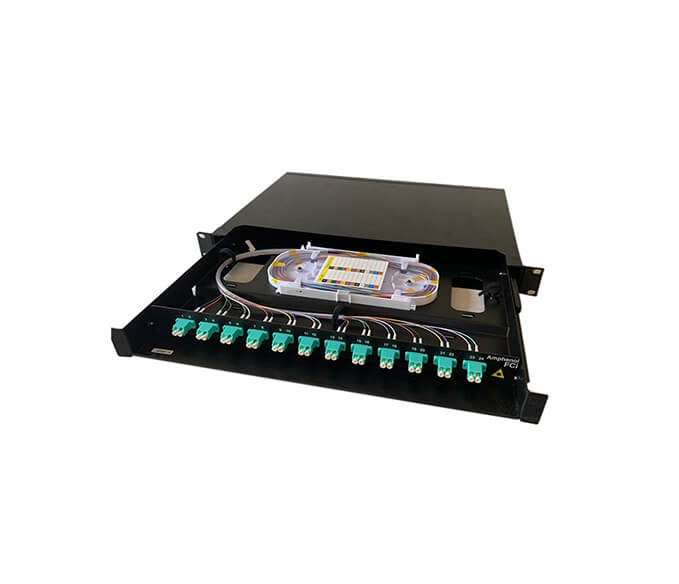

12F Loaded Fiber Panel - SM
Part code & Specification | |
---|---|
Model No: | ZYFM12LSM2022S |
Dimension: | 485mm x 50mm x 320mm |
Fiber Access: | Front, Rear and Top |
Type of System: | Sliding |
Material: | CRCA -1.2mm to 1.5mm |
Cable Entry: | Rear Side |
Splice Tray Material: | ABS |
Splice Tray Color: | White |
Fiber/Mode: | 12/Single Mode |

- Zyxel Fiber Managers are used for terminating Optical Fiber in Exchanges, Communication Rooms and in existing equipment racks where space is constraint or higher density is required. They have the feature of front sliding for better access of fiber cable and easy maintenance. It can accommodate up to 6 - 24 fiber in SCPC/APC and 6 - 48 fiber in SCPC / APC, LCPC / APC Simplex and Duplex connector configuration.Zyxel fiber management systems are of high capacity and durable. The fiber use within the unit are of superior quality and can comply with ITU-T standards.The LIU are manufactured of premium quality and the fiber adapters and pigtails shall be offered with high return loss and with minimum insertion loss.

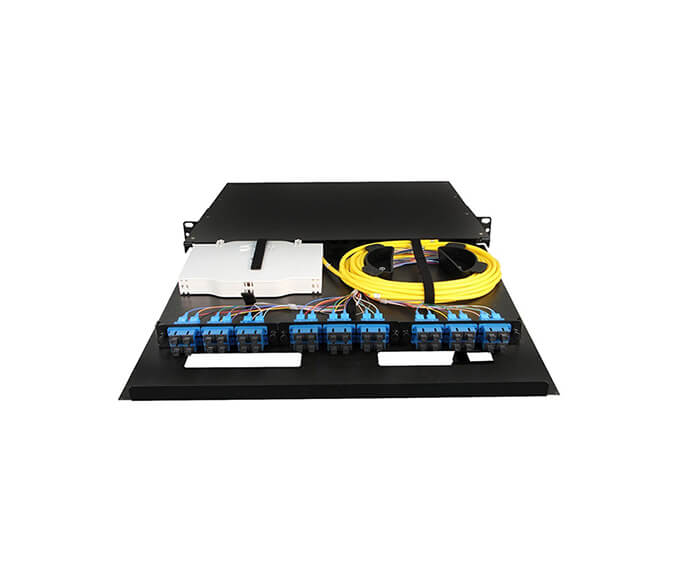

24F Loaded Fiber Panel - SM
Part code & Specification | |
---|---|
Model No: | ZYFM24LSM2022S |
Dimension: | 485mm x 50mm x 320mm |
Fiber Access: | Front, Rear and Top |
Type of System: | Sliding |
Material: | CRCA -1.2mm to 1.5mm |
Cable Entry: | Rear Side |
Splice Tray Material: | ABS |
Splice Tray Color: | White |
Fiber/Mode: | 24/Single Mode |
- Zyxel Fiber Managers are used for terminating Optical Fiber in Exchanges, Communication Rooms and in existing equipment racks where space is constraint or higher density is required. They have the feature of front sliding for better access of fiber cable and easy maintenance. It can accommodate up to 6 - 24 fiber in SCPC/APC and 6 - 48 fiber in SCPC / APC, LCPC / APC Simplex and Duplex connector configuration.Zyxel fiber management systems are of high capacity and durable. The fiber use within the unit are of superior quality and can comply with ITU-T standards.The LIU are manufactured of premium quality and the fiber adapters and pigtails shall be offered with high return loss and with minimum insertion loss.

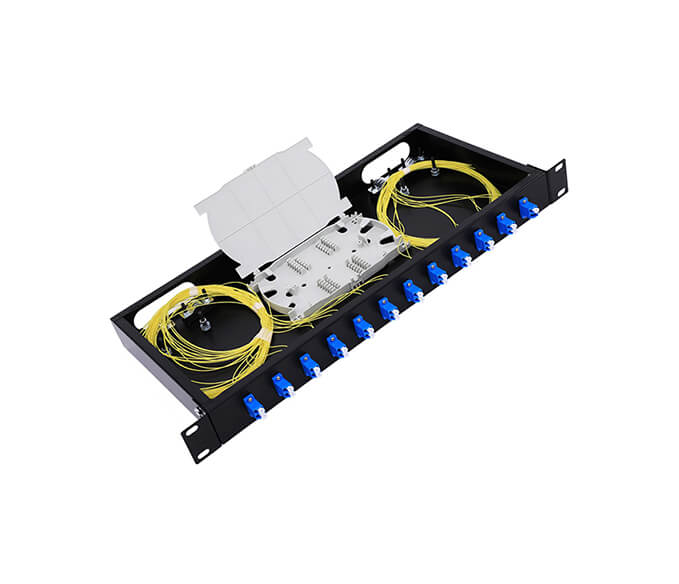

12F Loaded Fiber Panel - MM
Part code & Specification | |
---|---|
Model No: | ZYFM12LMM3022S |
Dimension: | 485mm x 50mm x 320mm |
Fiber Access: | Front, Rear and Top |
Type of System: | Sliding |
Material: | CRCA -1.2mm to 1.5mm |
Cable Entry: | Rear Side |
Splice Tray Material: | ABS |
Splice Tray Color: | White |
Fiber/Mode: | 12/Multimode |

- Zyxel Fiber Managers are used for terminating Optical Fiber in Exchanges, Communication Rooms and in existing equipment racks where space is constraint or higher density is required. They have the feature of front sliding for better access of fiber cable and easy maintenance. It can accommodate up to 6 - 24 fiber in SCPC/APC and 6 - 48 fiber in SCPC / APC, LCPC / APC Simplex and Duplex connector configuration.Zyxel fiber management systems are of high capacity and durable. The fiber use within the unit are of superior quality and can comply with ITU-T standards.The LIU are manufactured of premium quality and the fiber adapters and pigtails shall be offered with high return loss and with minimum insertion loss.

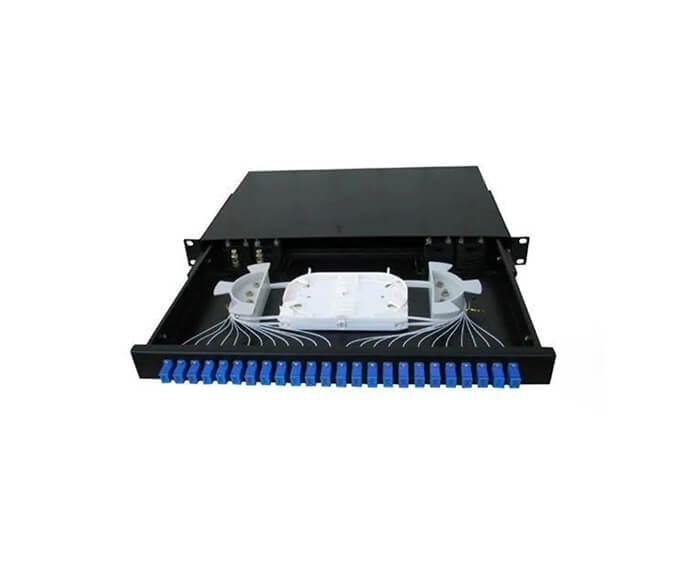

24F Loaded Fiber Panel - MM
Part code & Specification | |
---|---|
Model No: | ZYFM24LMM3022S |
Dimension: | 485mm x 50mm x 320mm |
Fiber Access: | Front, Rear and Top |
Type of System: | Sliding |
Material: | CRCA -1.2mm to 1.5mm |
Cable Entry: | Rear Side |
Splice Tray Material: | ABS |
Splice Tray Color: | White |
Fiber/Mode: | 24/Multimode |
- Zyxel Fiber Managers are used for terminating Optical Fiber in Exchanges, Communication Rooms and in existing equipment racks where space is constraint or higher density is required. They have the feature of front sliding for better access of fiber cable and easy maintenance. It can accommodate up to 6 - 24 fiber in SCPC/APC and 6 - 48 fiber in SCPC / APC, LCPC / APC Simplex and Duplex connector configuration. Zyxel fiber management systems are of high capacity and durable. The fiber use within the unit are of superior quality and can comply with ITU-T standards.The LIU are manufactured of premium quality and the fiber adapters and pigtails shall be offered with high return loss and with minimum insertion loss.
