USG FLEX Firewall

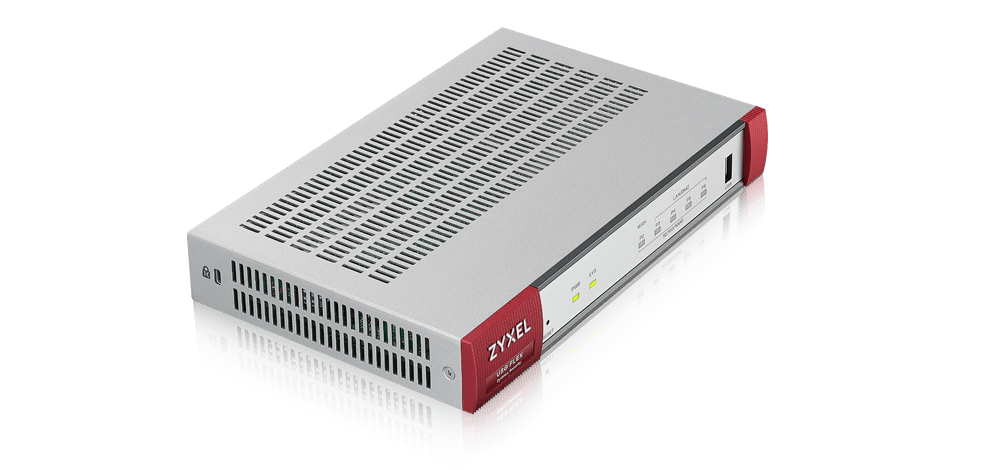

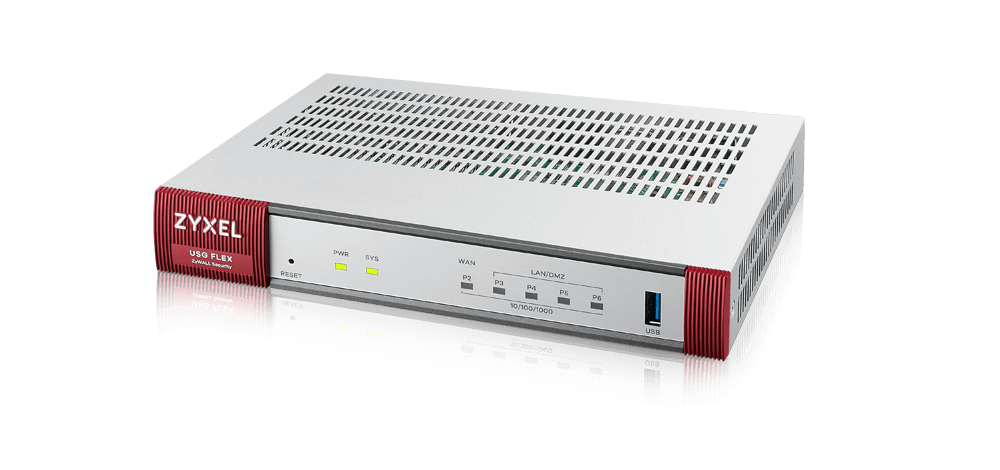

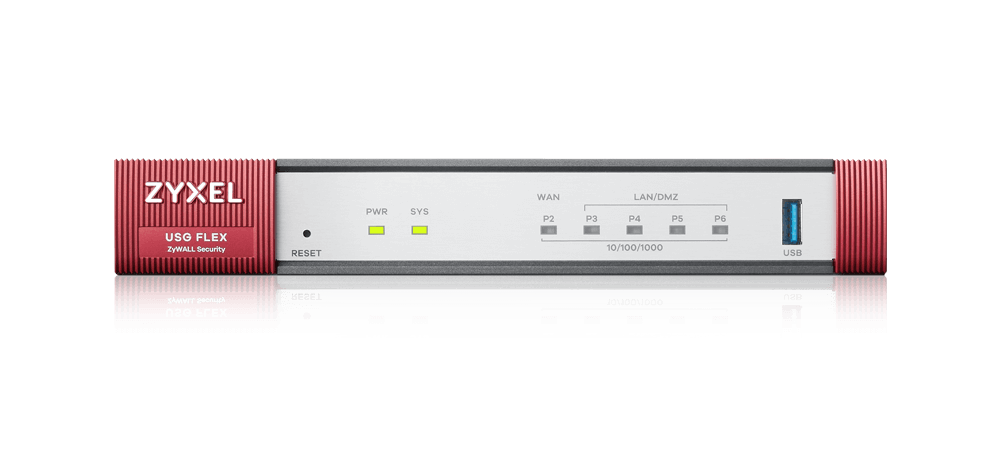

USG FLEX 50

License and Service

The USG FLEX 50 provides an indispensable feature set to perfectly fit small business requirements as well as to gain essential security services needed to protect against cyberattacks. Nebula Control Center (NCC) offers multiple subscription options to meet customers’ needs. The Nebula Plus/Professional Pack give you peace of mind at more control over your network updates and visibility, or even the most advanced management of cloud networking.

  • On Premises Feature Included
  • Nebula Feature Included
Service/Component On Premises Nebula Cloud
Content Filter Pack*
Web Filtering
Block access to malicious or risky websites
SecuReporter
Cloud-based security analytics and report with 30-day log retention
Security Profile Sync
Network Premium
Simplified single sign in to multiple resources
Nebula Professional Pack
A full feature set/service of cloud configuration, deployment, monitoring and management across firewalls, access points and switches
Nebula Professional Pack Service
Nebula Plus Pack
A new feature set/service that includes the most frequently requested advanced features
Nebula Plus Pack Service

*Please contact your local customer service if you can't use your content filter license with Nebula.

USG FLEX 50

  • 350Mbps

    SPI Firewall Throughput

  • 90Mbps

    VPN Throughput

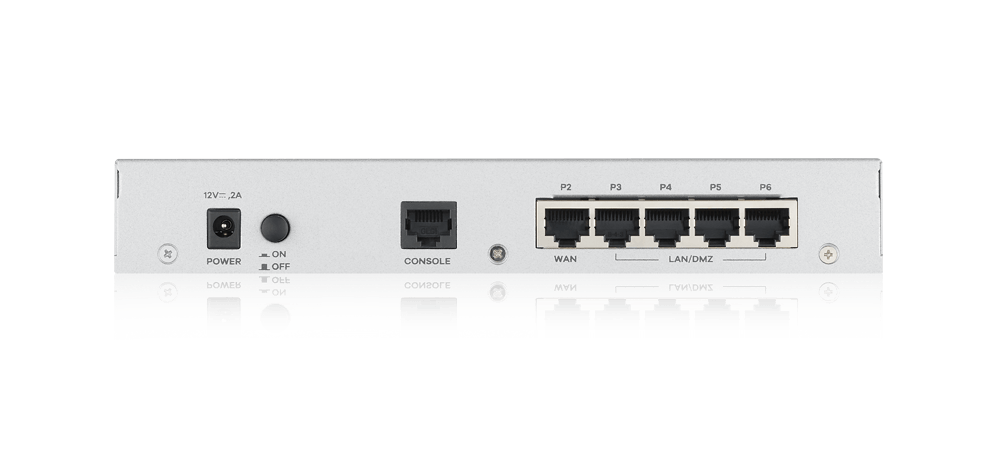

  • 4 x LAN/DMZ,
    1 x WAN

    USG FLEX Interfaces

  • Standalone /
    SecuReporter

    Management

Specification

Hardware Specifications


WiFi standard

-

10/100/1000 Mbps RJ-45 ports

4 x LAN/DMZ, 1 x WAN

USB 3.0 ports

1

Console port

RJ45

Rack-mountable

-

Fanless

Yes

System Capacity & Performance*1


SPI firewall throughput (Mbps)*2

350

VPN throughput (Mbps)

90

VPN IMIX Throughput (Mbps)*3

40

IPS throughput (Mbps)*4

-

Anti-Malware throughput (Mbps)*4

-

UTM throughput (Anti-malware & IPS, Mbps)*4

-

Max. TCP concurrent sessions*5

20,000

Recommended gateway-to-gateway IPsec VPN tunnels

5

Max. concurrent IPsec VPN tunnels*6

10

Concurrent SSL VPN users

5 / 15

VLAN interface

8

Wireless Specifications


Standard compliance

-

Wireless frequency

-

Radio

-

SSID number

-

No. of antenna

-

Antenna gain

-

Data rate

-

Key Features


Security Service

Sandboxing*7

-

Reputation Filter*7

-

IPS*7

-

Application Patrol*7

-

Email Security*7

-

Web filtering*7

Yes

SecuReporter*7

Yes

Collaborative Detection & Response*7

-

SSL (HTTPS) Inspection

-

Geo Enforcer

Yes

2-Factor Authentication

Yes

Device Insight

Yes

Security Profile Sync*7

Yes

VPN Features

VPN

IKEv2, IPSec, SSL, L2TP/IPSec

Microsoft Azure

Yes

Amazon VPC

Yes

WLAN Management

Default Number of Managed AP

-

Recommend max. AP in 1 AP Group

-

Secure WiFi Service*7

-

Maximum No. of Tunnel-Mode AP

-

Maximum No. of Managed AP

-

Management & Connectivity

Nebula Cloud Mode

Yes

Nebula Cloud Monitoring Mode

Yes

Device HA Pro

-

Link Aggregation (LAG)

-

Hotspot Management*7

-

Ticket printer support*9/ Support Qty (max.)

-

Concurrent device logins (default/max.)*7*8

64

Power Requirements


Power input

12V DC, 2.0 A max.

Max. power consumption (Watt Max.)

12

Heat dissipation (BTU/hr)

40.92

Physical Specifications


Item

Dimensions (WxDxH)(mm/in.): 216 x 147.3 x 33/8.50 x 5.80 x 1.30

Weight (kg/lb.): 0.88/1.94

Packing

Dimensions (WxDxH)(mm/in.): 276 x 185 x 98/10.87 x 7.28 x 3.86

Weight (kg/lb.): 1.41/3.11

Included accessories

Power adapter

RJ-45 - RS-232 cable for console connection

Environmental Specifications


Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -40°C to 70°C/-40°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

655,130

Acoustic noise

-

Certifications


EMC

FCC Part 15 (Class B)

CE EMC (Class B)

RCM

BSMI

Safety

BSMI

UL

Hardware Specifications


WiFi standard

-

10/100/1000 Mbps RJ-45 ports

4 x LAN/DMZ, 1 x WAN, 1 x SFP

USB 3.0 ports

1

Console port

RJ45

Rack-mountable

-

Fanless

Yes

System Capacity & Performance*1


SPI firewall throughput (Mbps)*2

900

VPN throughput (Mbps)

270

VPN IMIX Throughput (Mbps)*3

100

IPS throughput (Mbps)*4

540

Anti-Malware throughput (Mbps)*4

360

UTM throughput (Anti-malware & IPS, Mbps)*4

360

Max. TCP concurrent sessions*5

300,000

Recommended gateway-to-gateway IPsec VPN tunnels

20

Max. concurrent IPsec VPN tunnels*6

50

Concurrent SSL VPN users

30

VLAN interface

8

Wireless Specifications


Standard compliance

-

Wireless frequency

-

Radio

-

SSID number

-

No. of antenna

-

Antenna gain

-

Data rate

-

Key Features


Security Service

Sandboxing*7

Yes

Reputation Filter*7

Yes

IPS*7

Yes

Application Patrol*7

Yes

Email Security*7

Yes

Web filtering*7

Yes

SecuReporter*7

Yes

Collaborative Detection & Response*7

Yes

SSL (HTTPS) Inspection

Yes

Geo Enforcer

Yes

2-Factor Authentication

Yes

Device Insight

Yes

Security Profile Sync*7

Yes

VPN Features

VPN

IKEv2, IPSec, SSL, L2TP/IPSec

Microsoft Azure

Yes

Amazon VPC

Yes

WLAN Management

Default Number of Managed AP

8

Recommend max. AP in 1 AP Group

10

Secure WiFi Service*7

Yes

Maximum No. of Tunnel-Mode AP

6

Maximum No. of Managed AP

24

Management & Connectivity

Nebula Cloud Mode

Yes

Nebula Cloud Monitoring Mode

Yes

Device HA Pro

-

Link Aggregation (LAG)

-

Hotspot Management*7

-

Ticket printer support*9/ Support Qty (max.)

-

Concurrent device logins (default/max.)*7*8

64

Power Requirements


Power input

12V DC, 2A max.

Max. power consumption (Watt Max.)

12.5

Heat dissipation (BTU/hr)

42.65

Physical Specifications


Item

Dimensions (WxDxH)(mm/in.): 216 x 147.3 x 33/8.50 x 5.80 x 1.30

Weight (kg/lb.): 0.85/1.87

Packing

Dimensions (WxDxH)(mm/in.): 284 x 190 x 100/11.18 x 7.48 x 3.94

Weight (kg/lb.): 1.40/3.09

Included accessories

Power adapter

RJ-45 - RS-232 cable for console connection

Environmental Specifications


Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -40°C to 70°C/-40°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

655,130

Acoustic noise

-

Certifications


EMC

FCC Part 15 (Class B)

CE EMC (Class B)

BSMI

Safety

LVD (EN60950-1)

BSMI

Hardware Specifications


WiFi standard

802.11 ax/ac/n/g/b/a

10/100/1000 Mbps RJ-45 ports

4 x LAN/DMZ, 1 x WAN

USB 3.0 ports

1

Console port

RJ45

Rack-mountable

-

Fanless

Yes

System Capacity & Performance*1


SPI firewall throughput (Mbps)*2

900

VPN throughput (Mbps)

270

VPN IMIX Throughput (Mbps)*3

100

IPS throughput (Mbps)*4

540

Anti-Malware throughput (Mbps)*4

360

UTM throughput (Anti-malware & IPS, Mbps)*4

360

Max. TCP concurrent sessions*5

300,000

Recommended gateway-to-gateway IPsec VPN tunnels

20

Max. concurrent IPsec VPN tunnels*6

50

Concurrent SSL VPN users

30

VLAN interface

8

Wireless Specifications


Standard compliance

802.11 ax/ac/n/g/b/a

Wireless frequency

2.4 / 5 GHz

Radio

2

SSID number

4

No. of antenna

2 detachable antennas

Antenna gain

3dbi @2.4GHz/5GHz

Data rate

2.4GHz: up to 600Mbps

5GHz: up to 1200Mbps

Key Features


Security Service

Sandboxing*7

Yes

Reputation Filter*7

Yes

IPS*7

Yes

Application Patrol*7

Yes

Email Security*7

Yes

Web filtering*7

Yes

SecuReporter*7

Yes

Collaborative Detection & Response*7

Yes

SSL (HTTPS) Inspection

Yes

Geo Enforcer

Yes

2-Factor Authentication

Yes

Device Insight

Yes

Security Profile Sync*7

Yes

VPN Features

VPN

IKEv2, IPSec, SSL, L2TP/IPSec

Microsoft Azure

Yes

Amazon VPC

Yes

WLAN Management

Default Number of Managed AP

8

Recommend max. AP in 1 AP Group

10

Secure WiFi Service*7

Yes

Maximum No. of Tunnel-Mode AP

6

Maximum No. of Managed AP

24

Management & Connectivity

Nebula Cloud Mode

Yes

Nebula Cloud Monitoring Mode

Yes

Device HA Pro

-

Link Aggregation (LAG)

-

Hotspot Management*7

-

Ticket printer support*9/ Support Qty (max.)

-

Concurrent device logins (default/max.)*7*8

64

Power Requirements


Power input

12V DC, 2.5A max.

Max. power consumption (Watt Max.)

24.3

Heat dissipation (BTU/hr)

55.37

Physical Specifications


Item

Dimensions (WxDxH)(mm/in.): 216 x 149.28 x 33/8.50 x 5.88 x 1.30

Weight (kg/lb.): 1.00/2.20

Packing

Dimensions (WxDxH)(mm/in.): 284 x 190 x 100/11.18 x 7.48 x 3.94

Weight (kg/lb.): 1.53/3.37

Included accessories

Power adapter with plug

RJ-45 - RS-232 cable for console connection

Antenna

Environmental Specifications


Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -40°C to 70°C/-40°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

766,228.2

Acoustic noise

-

Certifications


EMC

FCC Part 15 (Class B)

IC EMC (Class B)

CE EMC (Class B)

RCM (Class B)

BSMI

Safety

LVD (EN62368-1)

BSMI

Hardware Specifications


WiFi standard

802.11 a/b/g/n/ac

10/100/1000 Mbps RJ-45 ports

4 x LAN/DMZ, 1 x WAN, 1 x SFP

USB 3.0 ports

1

Console port

RJ45

Rack-mountable

-

Fanless

Yes

System Capacity & Performance*1


SPI firewall throughput (Mbps)*2

900

VPN throughput (Mbps)

270

VPN IMIX Throughput (Mbps)*3

100

IPS throughput (Mbps)*4

540

Anti-Malware throughput (Mbps)*4

360

UTM throughput (Anti-malware & IPS, Mbps)*4

360

Max. TCP concurrent sessions*5

300,000

Recommended gateway-to-gateway IPsec VPN tunnels

20

Max. concurrent IPsec VPN tunnels*6

50

Concurrent SSL VPN users

30

VLAN interface

8

Wireless Specifications


Standard compliance

802.11 a/b/g/n/ac

Wireless frequency

2.4 / 5 GHz

Radio

2

SSID number

4

No. of antenna

3 detachable antennas

Antenna gain

2 dBi @ 2.4 GHz

3 dBi @ 5 GHz

Data rate

2.4 GHz: up to 300 Mbps

5 GHz: up to 866 Mbps

Key Features


Security Service

Sandboxing*7

Yes

Reputation Filter*7

Yes

IPS*7

Yes

Application Patrol*7

Yes

Email Security*7

Yes

Web filtering*7

Yes

SecuReporter*7

Yes

Collaborative Detection & Response*7

Yes

SSL (HTTPS) Inspection

Yes

Geo Enforcer

Yes

2-Factor Authentication

Yes

Device Insight

Yes

Security Profile Sync*7

Yes

VPN Features

VPN

IKEv2, IPSec, SSL, L2TP/IPSec

Microsoft Azure

Yes

Amazon VPC

Yes

WLAN Management

Default Number of Managed AP

8

Recommend max. AP in 1 AP Group

10

Secure WiFi Service*7

Yes

Maximum No. of Tunnel-Mode AP

6

Maximum No. of Managed AP

24

Management & Connectivity

Nebula Cloud Mode

Yes

Nebula Cloud Monitoring Mode

Yes

Device HA Pro

-

Link Aggregation (LAG)

-

Hotspot Management*7

-

Ticket printer support*9/ Support Qty (max.)

-

Concurrent device logins (default/max.)*7*8

64

Power Requirements


Power input

12V DC, 2A max.

Max. power consumption (Watt Max.)

12.5

Heat dissipation (BTU/hr)

42.65

Physical Specifications


Item

Dimensions (WxDxH)(mm/in.): 216 x 147.3 x 33/8.50 x 5.80 x 1.30

Weight (kg/lb.): 0.85/1.87

Packing

Dimensions (WxDxH)(mm/in.): 284 x 190 x 100/11.18 x 7.48 x 3.94

Weight (kg/lb.): 1.40/3.09

Included accessories

Power adapter

RJ-45 - RS-232 cable for console connection

Environmental Specifications


Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -40°C to 70°C/-40°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

989,810.8

Acoustic noise

-

Certifications


EMC

FCC Part 15 (Class B)

CE EMC (Class B)

BSMI

Safety

LVD (EN60950-1)

BSMI

Hardware Specifications


WiFi standard

-

10/100/1000 Mbps RJ-45 ports

4 x LAN/DMZ, 2 x WAN, 1 x SFP

USB 3.0 ports

2

Console port

DB9

Rack-mountable

Yes

Fanless

Yes

System Capacity & Performance*1


SPI firewall throughput (Mbps)*2

1,800

VPN throughput (Mbps)

450

VPN IMIX Throughput (Mbps)*3

160

IPS throughput (Mbps)*4

1,100

Anti-Malware throughput (Mbps)*4

570

UTM throughput (Anti-malware & IPS, Mbps)*4

550

Max. TCP concurrent sessions*5

600,000

Recommended gateway-to-gateway IPsec VPN tunnels

50

Max. concurrent IPsec VPN tunnels*6

100

Concurrent SSL VPN users

60

VLAN interface

16

Wireless Specifications


Standard compliance

-

Wireless frequency

-

Radio

-

SSID number

-

No. of antenna

-

Antenna gain

-

Data rate

-

Key Features


Security Service

Sandboxing*7

Yes

Reputation Filter*7

Yes

IPS*7

Yes

Application Patrol*7

Yes

Email Security*7

Yes

Web filtering*7

Yes

SecuReporter*7

Yes

Collaborative Detection & Response*7

Yes

SSL (HTTPS) Inspection

Yes

Geo Enforcer

Yes

2-Factor Authentication

Yes

Device Insight

Yes

Security Profile Sync*7

Yes

VPN Features

VPN

IKEv2, IPSec, SSL, L2TP/IPSec

Microsoft Azure

Yes

Amazon VPC

Yes

WLAN Management

Default Number of Managed AP

8

Recommend max. AP in 1 AP Group

20

Secure WiFi Service*7

Yes

Maximum No. of Tunnel-Mode AP

10

Maximum No. of Managed AP

40

Management & Connectivity

Nebula Cloud Mode

Yes

Nebula Cloud Monitoring Mode

Yes

Device HA Pro

-

Link Aggregation (LAG)

-

Hotspot Management*7

Yes

Ticket printer support*9/ Support Qty (max.)

Yes (SP350E) / 10

Concurrent device logins (default/max.)*7*8

200

Power Requirements


Power input

12V DC, 2.5A max.

Max. power consumption (Watt Max.)

13.3

Heat dissipation (BTU/hr)

45.38

Physical Specifications


Item

Dimensions (WxDxH)(mm/in.): 272 x 187 x 36/10.7 x 7.36 x 1.42

Weight (kg/lb.): 1.4/3.09

Packing

Dimensions (WxDxH)(mm/in.): 427 x 247 x 73/16.81 x 9.72 x 2.87

Weight (kg/lb.): 2.23 (W/O breacket), 2.42 (W/ breacket)

Included accessories

Power adapter

Rack mounting kit

Environmental Specifications


Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -40°C to 70°C/-40°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

529,688.2

Acoustic noise

-

Certifications


EMC

FCC Part 15 (Class B)

CE EMC (Class B)

C-Tick (Class B)

BSMI

Safety

LVD (EN60950-1)

BSMI

Hardware Specifications


WiFi standard

-

10/100/1000 Mbps RJ-45 ports

7(Configurable), 1x SFP

USB 3.0 ports

2

Console port

DB9

Rack-mountable

Yes

Fanless

-

System Capacity & Performance*1


SPI firewall throughput (Mbps)*2

2,300

VPN throughput (Mbps)

810

VPN IMIX Throughput (Mbps)*3

240

IPS throughput (Mbps)*4

1,500

Anti-Malware throughput (Mbps)*4

800

UTM throughput (Anti-malware & IPS, Mbps)*4

800

Max. TCP concurrent sessions*5

1,000,000

Recommended gateway-to-gateway IPsec VPN tunnels

150

Max. concurrent IPsec VPN tunnels*6

300

Concurrent SSL VPN users

150

VLAN interface

64

Wireless Specifications


Standard compliance

-

Wireless frequency

-

Radio

-

SSID number

-

No. of antenna

-

Antenna gain

-

Data rate

-

Key Features


Security Service

Sandboxing*7

Yes

Reputation Filter*7

Yes

IPS*7

Yes

Application Patrol*7

Yes

Email Security*7

Yes

Web filtering*7

Yes

SecuReporter*7

Yes

Collaborative Detection & Response*7

Yes

SSL (HTTPS) Inspection

Yes

Geo Enforcer

Yes

2-Factor Authentication

Yes

Device Insight

Yes

Security Profile Sync*7

Yes

VPN Features

VPN

IKEv2, IPSec, SSL, L2TP/IPSec

Microsoft Azure

Yes

Amazon VPC

Yes

WLAN Management

Default Number of Managed AP

8

Recommend max. AP in 1 AP Group

60

Secure WiFi Service*7

Yes

Maximum No. of Tunnel-Mode AP

18

Maximum No. of Managed AP

72

Management & Connectivity

Nebula Cloud Mode

Yes

Nebula Cloud Monitoring Mode

Yes

Device HA Pro

Yes

Link Aggregation (LAG)

Yes

Hotspot Management*7

Yes

Ticket printer support*9/ Support Qty (max.)

Yes (SP350E) / 10

Concurrent device logins (default/max.)*7*8

200 / 300

Power Requirements


Power input

12V DC, 4.17A

Max. power consumption (Watt Max.)

24.1

Heat dissipation (BTU/hr)

82.23

Physical Specifications


Item

Dimensions (WxDxH)(mm/in.): 300 x 88 x 44/16.93 x 7.4 x 1.73

Weight (kg/lb.): 1.65/3.64

Packing

Dimensions (WxDxH)(mm/in.): 351 x 152 x 245/13.82 x 5.98 x 9.65

Weight (kg/lb.): 2.83/6.24

Included accessories

Power adapter

Power cord

Rack mounting kit

Environmental Specifications


Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -40°C to 70°C/-40°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

529,688.2

Acoustic noise

24.5dBA on <25degC Operating Temperature 41.5dBA on full FAN speed.

Certifications


EMC

FCC Part 15 (Class A)

CE EMC (Class A)

C-Tick (Class A)

BSMI

Safety

LVD (EN60950-1)

BSMI

Hardware Specifications


WiFi standard

-

10/100/1000 Mbps RJ-45 ports

12 (configurable), 2x SFP (configurable)

USB 3.0 ports

2

Console port

DB9

Rack-mountable

Yes

Fanless

-

System Capacity & Performance*1


SPI firewall throughput (Mbps)*2

5,400

VPN throughput (Mbps)

1,100

VPN IMIX Throughput (Mbps)*3

550

IPS throughput (Mbps)*4

2,000

Anti-Malware throughput (Mbps)*4

1,450

UTM throughput (Anti-malware & IPS, Mbps)*4

1,350

Max. TCP concurrent sessions*5

1,600,000

Recommended gateway-to-gateway IPsec VPN tunnels

250

Max. concurrent IPsec VPN tunnels*6

500

Concurrent SSL VPN users

150

VLAN interface

128

Wireless Specifications


Standard compliance

-

Wireless frequency

-

Radio

-

SSID number

-

No. of antenna

-

Antenna gain

-

Data rate

-

Key Features


Security Service

Sandboxing*7

Yes

Reputation Filter*7

Yes

IPS*7

Yes

Application Patrol*7

Yes

Email Security*7

Yes

Web filtering*7

Yes

SecuReporter*7

Yes

Collaborative Detection & Response*7

Yes

SSL (HTTPS) Inspection

Yes

Geo Enforcer

Yes

2-Factor Authentication

Yes

Device Insight

Yes

Security Profile Sync*7

Yes

VPN Features

VPN

IKEv2, IPSec, SSL, L2TP/IPSec

Microsoft Azure

Yes

Amazon VPC

Yes

WLAN Management

Default Number of Managed AP

8

Recommend max. AP in 1 AP Group

200

Secure WiFi Service*7

Yes

Maximum No. of Tunnel-Mode AP

130

Maximum No. of Managed AP

520

Management & Connectivity

Nebula Cloud Mode

Yes

Nebula Cloud Monitoring Mode

Yes

Device HA Pro

Yes

Link Aggregation (LAG)

Yes

Hotspot Management*7

Yes

Ticket printer support*9/ Support Qty (max.)

Yes (SP350E) / 10

Concurrent device logins (default/max.)*7*8

500 / 2000

Power Requirements


Power input

100-240V AC, 50/60Hz, 2.5A max.

Max. power consumption (Watt Max.)

46

Heat dissipation (BTU/hr)

120.1

Physical Specifications


Item

Dimensions (WxDxH)(mm/in.): 430 x 250 x 44/16.93 x 9.84 x 1.73

Weight (kg/lb.): 3.3/7.28

Packing

Dimensions (WxDxH)(mm/in.): 519 x 392 x 163/20.43 x 15.43 x 6.42

Weight (kg/lb.): 4.8/10.58

Included accessories

Power cord

Rack mounting kit

Environmental Specifications


Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -40°C to 70°C/-40°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

947,736

Acoustic noise

25.3dBA on <25degC Operating Temperature 46.2dBA on full FAN speed.

Certifications


EMC

FCC Part 15 (Class A)

CE EMC (Class A)

C-Tick (Class A)

BSMI

Safety

LVD (EN60950-1)

BSMI


  • Note:
  • *: This matrix with firmware ZLD5.37 or later.
  • *1: Actual performance may vary depending on system configuration, network conditions, and activated applications.
  • *2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
  • *3: VPN throughput measured based on RFC 2544 (1,424-byte UDP packets); IMIX: UDP throughput based on a combination of 64 byte, 512 byte and 1424 byte packet sizes.
  • *4: Anti-malware (with Express Mode) and IPS throughput measured using the industry standard HTTP performance test (1,460-byte HTTP packets). Testing done with multiple flows.
  • *5: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.
  • *6: Including Gateway-to-Gateway and Client-to-Gateway.
  • *7: With Zyxel service license to enable or extend the feature capacity.
  • *8: This is the recommend maximum number of concurrent logged-in devices.
  • *9: With Hotspot Management license support.
  • *10: USG FLEX 100 rev1 is adopting a new hardware design equipped with 4 x LAN/DMZ, 1 x WAN.

* License subscription fee and permits may vary by country.
* All specifications are subject to change without notice.
