Dual-Band Wireless AX 10G Fiber IAD with SFP+

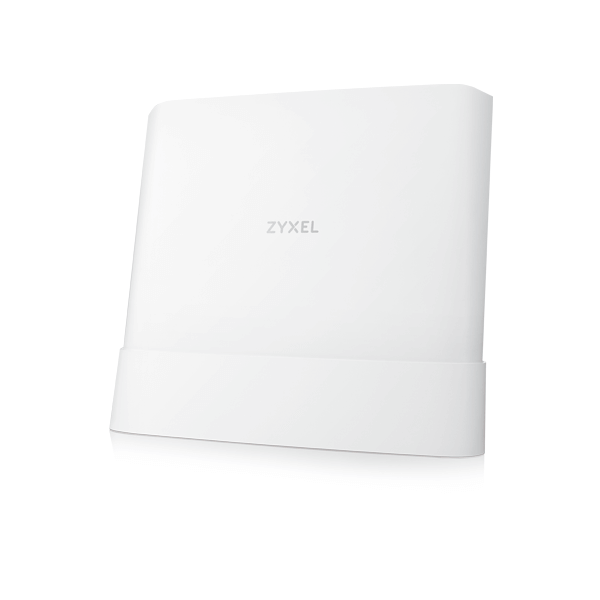

AX7501-B0, Dual-Band Wireless AX 10G Fiber IAD with SFP+

The Zyxel AX7501-B0 Dual-Band Wireless AX 10G Fiber IAD with SFP+ provides ultra-high-speed fiber connection for triple-play services. By plugging in different optical transceiver option, AX7501-B0 could provide 10G service in either active fiber or XGS-PON network. The latest dual-band wireless WiFi 6 (11ax) technology optimizes bandwidth utilization to increase network capacity and the number of simultaneous streams, allowing more subscribers to enjoy superior connectivity with extremely low latency.

AX7501-B0, 10G fiber data access
AX7501-B0, 2.4 GHz 4x4 ax + 5 GHz 4x4 ax
AX7501-B0, EasyMesh standards compliant
AX7501-B0, ZyEE containers
AX7501-B0, SFP+ for passive and active fiber
AX7501-B0, TR-069/OMCI
AX7501-B0, OPAL platform

Benefits

WiFi 6 (11ax) technology for superior performance and coverage

The Zyxel AX7501-B0 features WiFi 6 (11ax) technology to provide an ultimate solution for both speed and coverage. With WiFi 6 (11ax) support, the wireless maximum throughput rate can achieve 6000 Mbps*, support MU-MIMO features and enable reliable wireless connections for high-speed data and multimedia applications. It greatly reduces dead zones in homes, solves the high-density issues and supports the latest high-throughput and low-latency applications in order to help service providers to achieve a higher level of customer satisfaction.

Uplink MU-MIMO

AX7501-B0, WiFi 6 (11ax) technology for superior performance and coverage

OFDMA

AX7501-B0, WiFi 6 (11ax) technology for superior performance and coverage

Integrated internet services through fiber

The Zyxel AX7501-B0 supports 10GbE Ethernet LAN with reserved SFP+ cage to support 10G active fiber Ethernet functions. The product smoothly migrates from today’s GPON deployments to the next-generation 10G symmetric fiber solutions.

TR-069 remote management

With the TR-069 standard management specifications, the Zyxel AX7501-B0 allows service providers to manage and configure client devices remotely without interfering end users. This unique feature not only offers true “plug-and-play” experience but also reduces deployment complexity, and it also saves operating as well as maintenance costs for service providers.

Zyxel OPAL firmware realizes the flexibility and faster time to market

With same OPAL firmware trunk applied in Zyxel CPE, the AX7501-B0 inherits a rich, field-proven feature set including TR-069, VoIP and more. Service providers can expect the same user experience after they migrate to new devices. Furthermore, the lab qualification time can be greatly reduced by using the same OPAL firmware trunk. As a flexible software platform, OPAL, a modular software architecture and open framework, provides the flexibility for easy feature tailoring to assure all the application requests can be addressed.

Faster software development and less operating system risks

Zyxel ZyEE is a secure and future-proof Linux kernel-based execution environment, also known as a container. ZyEE creates a predictable environment isolated from other applications for software developers and service providers to develop, enable, install, and uninstall third-party applications without risking the core operating system. ZyEE's portability and scalability enhance software development agility by providing broader compatibility with various hardware environments. In addition, the compact and structurally simple ZyEE optimizes system computing resources. With ZyEE, service providers can deliver new features to subscribers with reduced time-to-market while remotely managing services through existing ACS servers.

Application Diagram

Active Fiber Application

AX7501-B0, Active Fiber Application

Passive Fiber Application

AX7501-B0, Passive Fiber Application

* All specifications are subject to change without notice.
** The EasyMesh standards-compliant AX7501-B0 can only work with the WX3401 Wireless Extender. The estimated system ready time is Dec/E, 2020.
