Wireless Standard
- IEEE 802.11b/g/n 2.4 GHz
- IEEE 802.11a/n/ac 5 GHz
Wireless Transfer Rate
- Transmit:
- 450 Mbps* for 2.4 GHz
- 1733 Mbps* for 5 GHz
- Receive:
- 450 Mbps* for 2.4 GHz
- 1733 Mbps* for 5 GHz
Wireless Security
- 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
WLAN Features
- MU-MIMO Support
- Auto channel selection
- Wi-Fi Multimedia (WMM)
- Wireless scheduling
- Wireless output power management
- Multiple SSID up to 4
- Wi-Fi Protected Setup (WPS)
- Intra-BSS traffic block
- MAC address filtering
Firewall
- Stateful Packet Inspection (SPI)
- Denial-of-Service (DoS) attack prevention
- ICMP blocking
Routing
- IPv4/IPv6
- NAT
- Port forwarding
- WAN connection type: DHCP, PPPoE
- DHCP option 60/121/125
- DHCP server on LAN
- IGMP v1/v2
- IGMP proxy
- Dynamic DNS
VPN Pass-through
VLAN
- 802.1q tag/tag based VLAN
- VLAN to ETH port mapping
- Bridged/routed VLAN support
Management
- Bandwidth management QoS
- Web GUI (HTTP/HTTPS)
- TR-069/TR-098
- SNMP v1/v2c & MIB II
- Firmware upgrade through GUI/TR-069
- 2-tier level access and administration
- Customized factory default
Other
- Content filter
- Parental control
- UPnP
- USB media sharing
- WAN: One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
- LAN: Four 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
- LED indicators:
- Power
- WAN
- Internet
- WLAN (2.4 GHz)
- WLAN (5 GHz)
- LAN (1 - 4)
- WPS
- USB (1 - 2)
- Internal antenna x 7: 3 for 2.4 GHz; 4 for 5 GHz
- Button:
- Power on/off
- Wireless on/off
- LED on/off
- WPS
- Reset
- Power 12V DC, 3A
- Power consumption: 30 watt max.

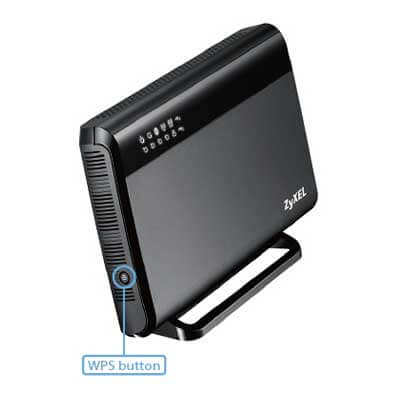

- Front Panel:

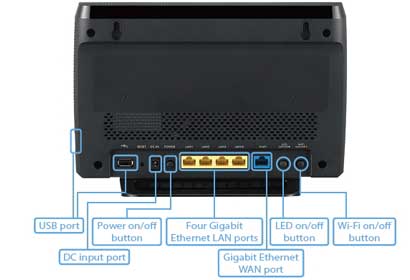

- Rear Panel:

- Item dimensions (WxDxH): 260.4 x 168.6 x 43.5 mm (10.25" x 6.64" x 1.71")
- Item weight: 590 g (1.3 lb.)
- Packing dimensions (WxDxH): 280 x 202 x 96 mm (11.02" x 7.95" x 3.78")
- Packing weight: 1,140 g (2.51 lb.)
Operating Environment
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 90% (Non-condensing)
Storage Environment
- Temperature: -30°C to 70°C (-22°F to 158°F)
- Humidity: 10% to 95% (Non-condensing)
- Safety: CE-LVD
- EMC: CE, FCC, IC
- Wireless router
- Power adapter
- Ethernet cable
- Quick start guide
* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.
