4G LTE-A Outdoor Router

The Zyxel LTE7461-M602 4G LTE-A Outdoor Router is good for any venue like suburban areas, rural area, public locations, homes, and offices. Enjoy 4G LTE-Advanced technology effortlessly with the LTE7461-M602.

  • Cat. 6, DL 300 Mbps
  • DL 2x2 MIMO
  • 802.3af/at PoE
  • IP68-certified
  • Bridge/router
  • Remote management
  • Zyxel mobile app
Download resources

Lightning-fast internet connectivity

The Zyxel LTE7461-M602 employs 3GPP UE Category 6 – the best-practice LTE technology with downlink data rates of up to 300 Mbps through 4 Spatial Streams on two component carriers.


Easy installation with Zyxel mobile app

Easy installation is realized with a flexible wall or pole mounting kit, integrated 802.3af/at PoE injector support, and dedicated Wi-Fi interface. The LTE7461-M602 connects to Zyxel’s mobile app with intuitive RF signal strength graphics for base station alignment.


Built-in 2x2 MIMO high-gain antenna

The LTE7461-M602 provides 2x2 MIMO high-gain antennas of up to 8 dBi per element that work effectively in outdoor environments. The outdoor design enables it to work under near non-line-of-sight conditions to increase coverage and bandwidth as well as to eliminate edge corners having difficulty accessing good signals.

Non-stop connectivity with LTE 2nd WAN for failover

The wireless LTE allows you to take advantage of the 2nd WAN without a cabling plan. As long as the gateway supports “Multi-WAN Failover”, you can just connect the LTE7461-M602 to the existing gateway and set LTE as the failover WAN and relieves the risk of network outage due to the dependence on a single WAN connection.

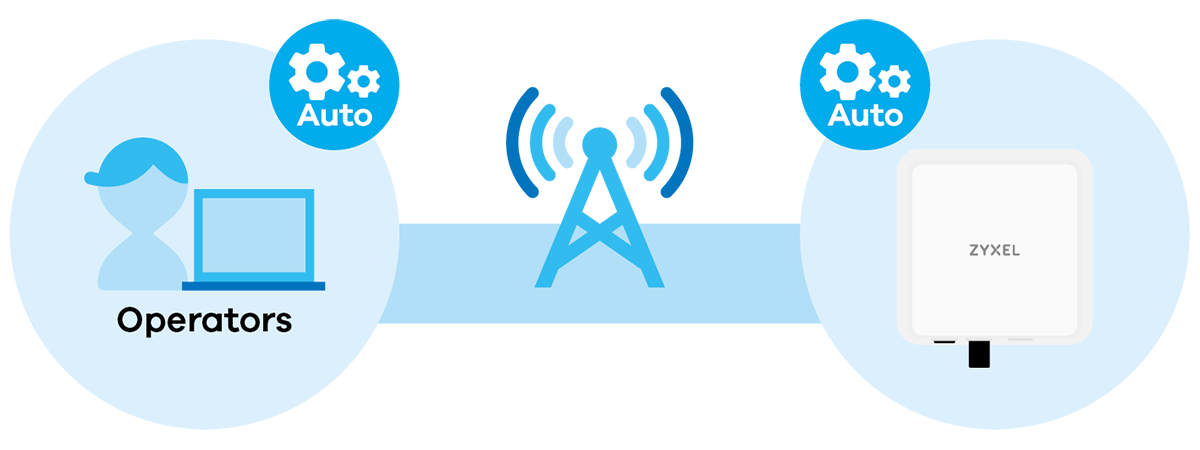

Remote management, TR-069, HTTP/Web GUI and FTP

Through the LTE radio interface, the LTE7461-M602 supports TR-069, remote GUI and remote FTP to be fully configurable and software upgradeable through events triggered by the operators. Thanks to TR-143 remote throughput testing, the troubleshooting can be performed remotely with better efficiency. Additional support TR-069 with TR-181 issue-2 data model also enhances service providers’ visibility on subscriber LAN networks for improved customer assistance.

System Specifications

IP Networking
  • Supports IPv4/IPv6 dual-stack (NDP IPv6)
  • DHCP server
  • ICMP supported
  • Virtual Private Network (VPN) passthrough
  • Supports NAT/NAPT
  • Supports DMZ
  • Supports port forwarding/triggering
  • Supports ALG
  • Supports bridge/router modes
  • Supports dynamic DNS for first APN
  • Supports remote management under bridge mode
IP Firewall
  • Firewall can be enabled or disabled via GUI
  • DoS attack detection
  • Supports SPI
  • Application-level Firewall
  • Filters LAN MAC address
  • Filters LAN IP address
  • Filters URLs
  • Supports local/remote device management and firmware upgrade via TR-069 and Web GUI
  • APN management
  • PIN/PUK management
  • Network selection
  • Network preference
  • Operating frequency band selection
  • CLI/SSH (local and remote SSH access)
  • Supports UPNP IGD
  • Supports SSH with key access
  • Supports bandwidth management
  • Supports mobile app (iOS and Android)
  • Supports remote throughput testing (TR-143)
  • LTE Band Pilot System management compatible

Hardware Specifications

LTE Interface
  • Standard-compliant: 3GPP UE Category 6
  • Supports LTE bands: 2/4/5/7/12/13/25/26/29/66
  • Supports WCDMA bands: 2/4/5
  • Peak data rate:
    LTE-FDD: max 300 Mbps (DL) max 50 Mbps (UL)*
  • 2 DL Carrier Aggregation combination:
    B2+B2/B5/B12/B13/B26/B29; B4+B4/B5/B12/B13/B26/B29; B7+B5/B7/B12/B13/B26/B29; B25+B5/B12/B13/B25/B26/B29; B66+B5/B12/B13/B26/B29/B66; (B29 is only for secondary component carrier)
  • LTE antennas: 2 embedded directional antennas of up to 8 dBi/element (2x2 MIMO)
  • Supports DL modulation QPSK, 16-QAM, 64-QAM
  • Supports UL modulation QPSK and 16-QAM
  • Max EIRP 30 dBm

Power Consumption

  • 13 watt (peak) – at PoE

Physical Specifications

Hardware Interface
  • One GbE RJ-45 PoE LAN port
  • One tri-color LED indicator for
    • Power status
    • Internet status
    • Wi-Fi status
  • One Wi-Fi On/Off and WPS button
  • One 3FF micro SIM card slot
  • One Reset & Reboot default button
Power Interface
  • Standard IEEE 802.3af/at PoE PD support compatible
Wi-Fi Interface for Management
  • 802.11 n/g/b, 2.4 GHz
  • Hidden SSID
  • MAC address filtering
  • 2x2 embedded antennas
  • For local management purpose only
Physical Specification
  • Dimensions (WxDxH): 254 x 255 x 58 mm (9.99” x 10.03” x 2.28”)
  • Weight: 1100 g (2.43 lb.)
  • Package dimensions (WxDxH): 420 x 280 x 108 mm (16.54” x 11.02” x 4.25”)
  • Package weight: 3050 g (6.72 lb.)

Environmental Specifications

Ingress Protection Rating
  • IP68
Lightning Protection
  • K.21 enhanced mode, 6 kV
Operating Environment
  • Temperature: -40°C to 60°C (40°F to 140°F)
  • Humidity: 5% to 95% (non-condensing)
Storage Environment
  • Temperature: -40°C to 70°C (-40°F to 158°F)
  • Humidity: 5% to 95% (non-condensing)


  • FCC/IC/AT&T/Verizon

Package Contents

  • Gigabit PoE injector with LED indicator
  • Ethernet cable
  • Power cord
  • Cable gland
  • Quick Start Guide
  • Wall/pole mounting kit

*Please note that all specifications are subject to change without prior notice.

LTE7461-M602 Application diagram


File type Model Version Release date Language Download
Datasheet LTE7461-M602 9 English
Users Guide LTE7461-M602 2.00 Ed1 English
