Mounting Accessories

Accessory

How to Install

How to Install

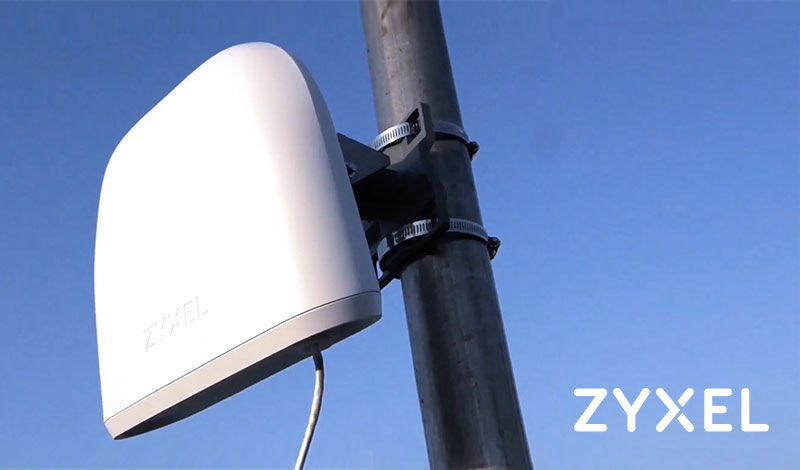

Zyxel Waterproof Enclosure for Your Access Point

This waterproof enclosure provides a great protection for Zyxel WiFi AP in tough environments. Mount it easily on any wall or pole (pole mount kit sold separately). This Zyxel waterproof enclosure is designed to withstand a wide range of temperature from 50°C to -20°C, waterproof the Access Point with IPX5 certified rating and extend its lifespan with its UV stabilized plastic shielding.

Wall Mount

Secure inner case to the wall
1
Connect the Ethernet cable to the AP
2
Attach the AP to the inner case
3
Slide the outer case over the inner case
4
Screw the outer and the inner case together
5

Pole Mount

(mounting kit sold separately)

Install AP into enclosure
1
Setting the Rotating Bracket
2
Screws up bracket on enclosure
3
Fix rotating bracket with steel tube
4
Place the metal belts around a pole
5

Ceiling mount with clips

Fixing 2 clips on dropped ceiling grid
1
Fasten AP bracket by screws which come with accessory package
2
Attach Access Point to mounting bracket by rotating AP
3

Desktop Mount

(mounting kit sold separately)

Free Up Your Space

For desktop mount, the ACCESSORY-ZZ0107F is a desk mount kit perfectly made compatible for Zyxel’s wall-plate access points for an additional option.

Desktop Mount

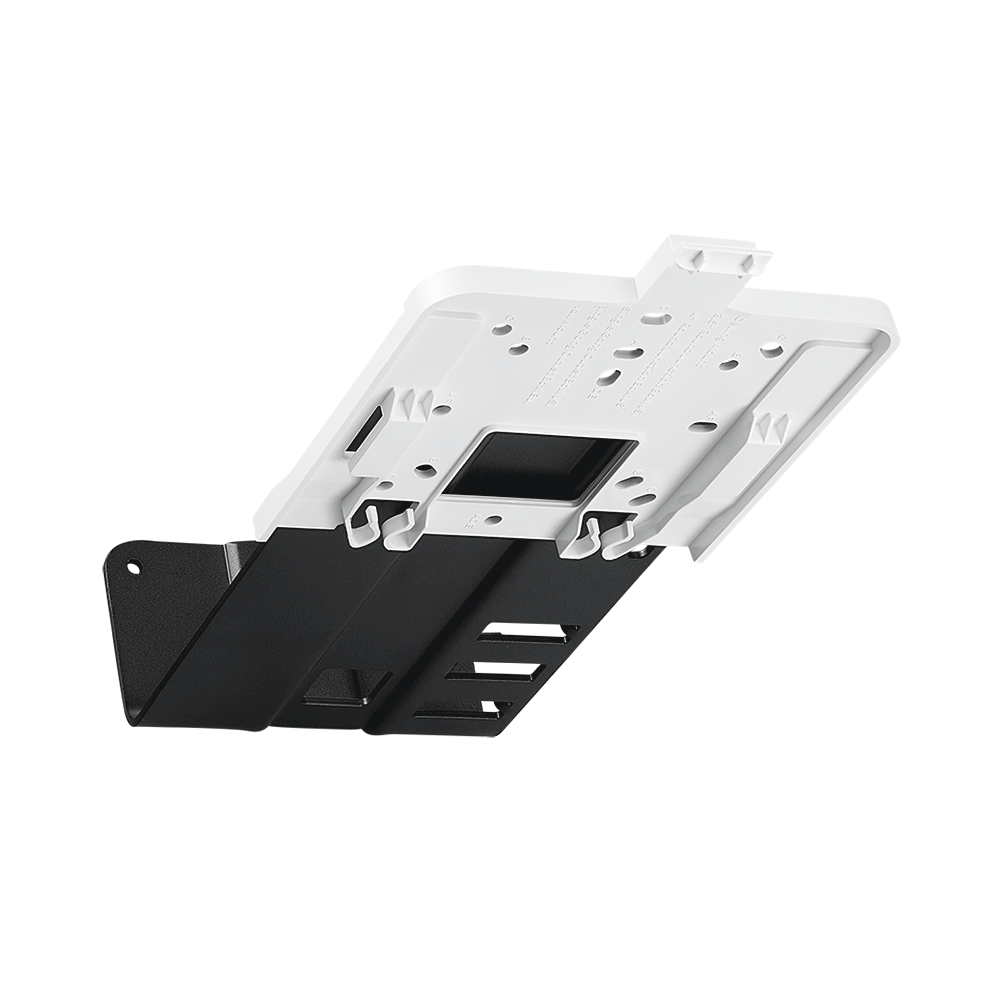

Wall Mount Arm

With the wall mount arm, wall-mounted APs can be angled precisely to deliver the same optimized antenna pattern as ceiling-mounted installations.

Wall Mount Arm
Part # ACCESSORY-ZZ0108F
Dimension 202 x 96 x 54.8mm
Weight 368g
Models
