Higher Network Speed Boosts Network Performance
Zyxel PoE injectors are here to meet the increasing demand for connections to high-speed networking devices such as WiFi 7 and WiFi 6 APs, surveillance PTZ cameras, and advanced POS terminals. The PoE12-30W supports network speeds of up to 2.5Gbps, while both the PoE12-60W* and PoE12-90W support network speeds of up to 10Gbps.
*Limited support for Cat 6a, with cable lengths of up to 30 meters.
Larger Power Budget Powers More PD Devices
The PoE12-30W complies with the IEEE 802.3at PoE+ standard, while the PoE12-60W and PoE12-90W comply with the IEEE 802.3bt PoE++ standard to provide PoE power budgets of up to 30W, 60W, and 90W, respectively. They ensure interoperability and compatibility with other standard-based PoE-capable devices.
PoE12-90W

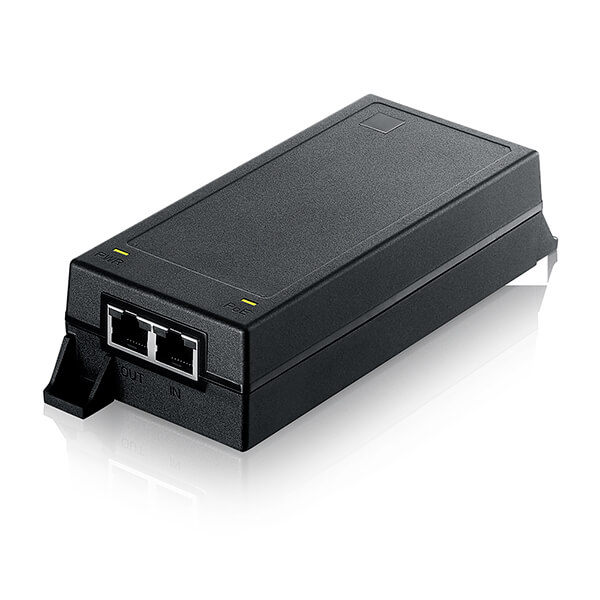

PoE12-60W

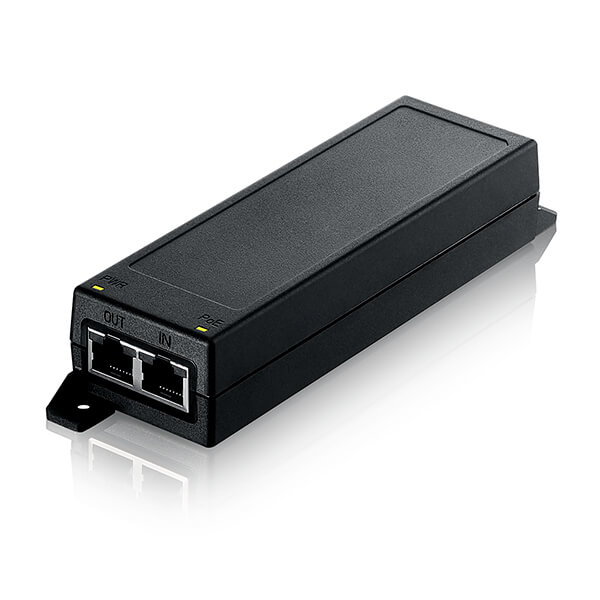

PoE12-30W
Easy to Use with Robust Protection
These three PoE injectors make it easy to connect network devices without any configuration. The wall-mount and desktop designs accommodate most installation scenarios. They have overload and short circuit protection, which shuts down the power immediately if those issues occur, leaving no damage to your equipment.
Application Scenario
PoE Injector Options
PoE12-30W  |
PoE12-60W  |
PoE12-90W  |
|
|---|---|---|---|
| RJ-45 (Data) Input | 1 | 1 | 1 |
| RJ-45 (Data + Power) Output | 1 | 1 | 1 |
| Data Rate | 100 Mbps and 1/2.5 Gbps | 100 Mbps and 1/2.5/5/10* Gbps *Limited support for Cat 6a, with cable lengths of up to 30 meters. |
100 Mbps and 1/2.5/5/10 Gbps |
| PoE Standard | PoE, PoE+ | PoE, PoE+, PoE++ | PoE, PoE+, PoE++ |
| Total PoE budget | 30 watts | 60 watts | 90 watts |
| Suggested WiFi 6/6E/7 AP |
* All specifications are subject to change without notice.
