2.4/5 GHz Indoor/Outdoor Antenna
Antenna and Cable
Antenna
Product name
Dual-Band 5dBi Omni-Directional Outdoor Antenna
Space
Outdoor
Frequency band (MHz)
2.4GHz: 2400 - 2483
5GHz: 5150 - 5875
Gain
2.4GHz: 4.5 dBi
5GHz: 2 dBi
VSWR
2.0:1 Max.
Polarization
Linear, vertical
Radiation pattern

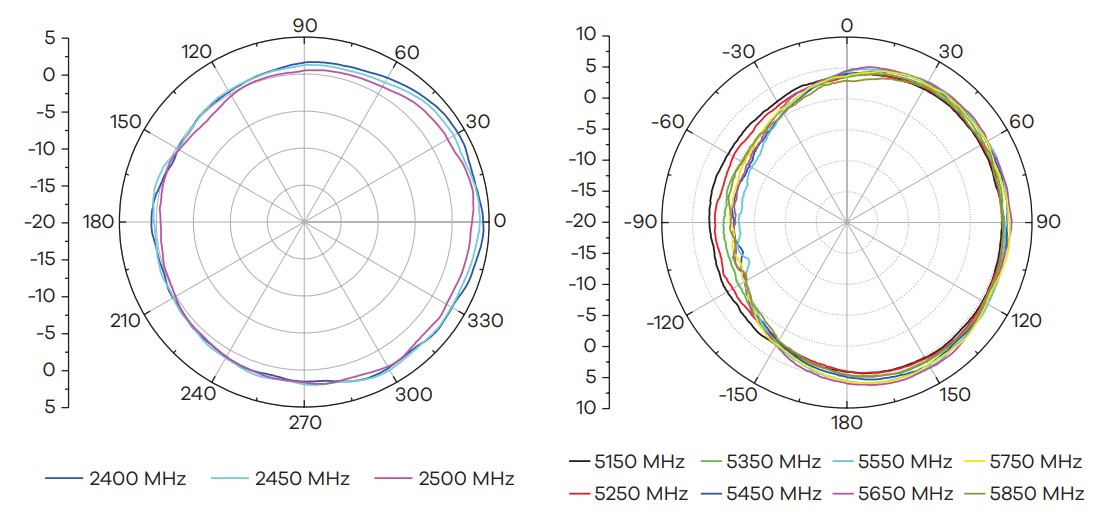

H-plane

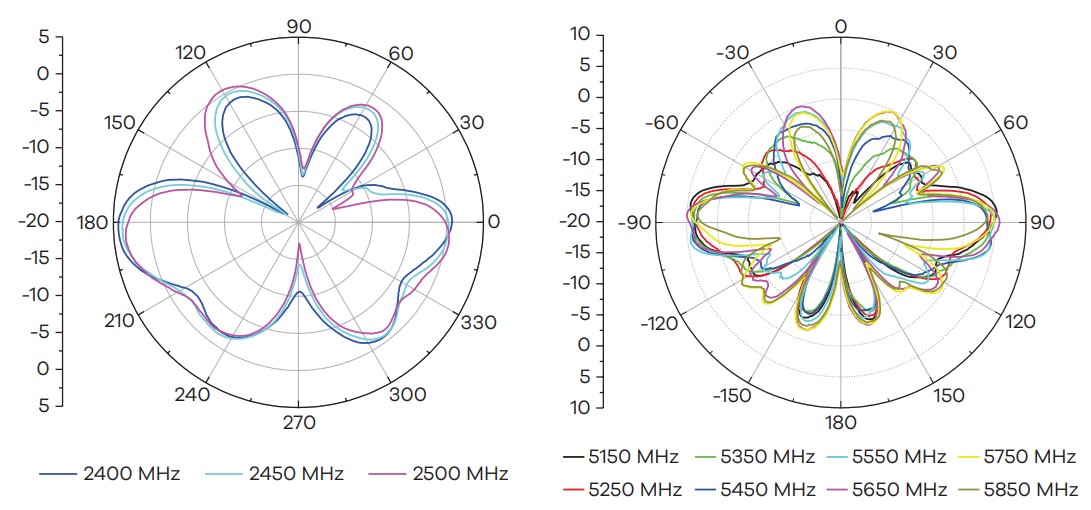

V-plane
HPBW/Horizontal
360°
HPBW/Vertical
30°/15°
Impedance
50 Ω
Connector
N type plug
Survival wind speed
216 km/hr
Temperature
-10°C to 70°C/14°F to 158°F
Humidity
95% at 55°C (131°F)
Radome color
White
Radome material
ABS
Dimensions (WxDxH)(mm/in.)
f 22 x 183
Weight (g/lb.)
70/0.15
Cable
Product name
Surge Arrestor with Jumper Cable SMA-R to N
Connector
RP-SMA plug, N-jack (Jumper Cable)
N-plug, N-jack (Surge Arrestor)
Cable Length
0.5 m
Outer diameter
-
Operating temperature
-40°C to 85°C/-40°F to 185°F
Attenuation
1.5 dB @0 - 6 GHz (Jumper cable)
0.8 dB @0 - 6 GHz (Surge arrestor)
* All specifications are subject to change without notice.
