System Specifications

Standard

• Compliant with IEEE 1901 with data transfer rate of up to 500 Mbps*
• Compatible with HomePlug AV standard

Access Methods

• CSMA/CA channel-access schemes

Range

• Up to 300 meters over power line

Power-saving mode

• If link is inactive for a period (default setting: 60 seconds)

Security

• 128-bit AES encryption

Quality of Service(QoS)

• ToS
• Support up to 4-level type QoS
• Support up to 8-level VLAN priority field

Frequency Band

• 2 MHz ~ 67.5 MHz

Dynamic Neighbor Network Support

IGMP

• IGMP snooping for multicast to multiple unicast mapping

System Requirements

• Deployment requirements :
  • Devices with 10/100 or 10/100/1000 Mbps Ethernet Port
  • Operates system independent
• Utility software OS support :
  • Microsoft Windows XP/Vista/7

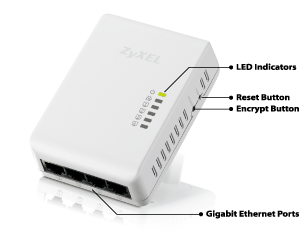

Hardware Specifications

• Ethernet interface: Four 10/100/1000 Mbps RJ-45 connectors with auto MDI/MDIX support
• Power rating: 100-240 V AC, 50/60Hz
• LED indicators:
  • Power on/off
  • Powerline link/quality
    • Green: Best, Amber: Better, Red: Good
  • Ethernet link/activity
• Buttons:
  • Encrypt button
  • Reset button
• Power consumption:
  • Full operations: 5 watt max.
  • Power-saving mode: 1 watt max.
• Plug type:
  •  EU type: Two pins, 220 V - 230 V
  •  US type: Two pins,120 V
  •  UK type: Three pins, 240 V

Physical Specifications

• Item dimension (WxDxH): 76 x 72 x 108 mm (2.99"x2.83"x4.24")
• Item weight: 160 g (0.36 lb.)
• Packing dimension (WxDxH):
  • Single pack: 134 x 94 x 178 mm (5.27"x3.7"x7.01")
  • Starter kit pack: 260 x 103 x 155 mm (10.22"x4.05"x6.09")
  • Packing weight:
    • Single pack: 419 g (0.92 lb.)
    • Starter kit pack: 662 g (1.45 lb.)

Environmental Specifications

• Operating Environment:
  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 20% to 90% (Non-condensing)
• Storage environment:
  • Temperature: -20°C to 70°C (-4°F to 158°F)
  • Humidity: 20% to 95% (Non-condensing)

Certifications

• Safety
  • CE-LVD
• EMC
  • CE, FCC

Package Contents

• Powerline Ethernet Switch
• Ethernet cable
• Quick start guide
• Support CD
• Warranty card

*The theoretical maximum channel data transfer rate is derived from IEEE 1901 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, quality of electrical installation and other adverse conditions.
