System Specifications

Wireless Standard

• WirelessHD™ 1.0

Wireless Transfer Rate

• Up to 4 Gbps over 60 GHz wireless frequency

Range

• In-room range up to 10 meters (30 feet)

Interface

• HDMI 1.4a (3D) with CEC support

Security

• HDCP 2.0 content protection

Signal Compatibility

• 480i (SDTV) and 480p (EDTV)
• 720p (HDTV 2D & 3D)
• 1080i (HDTV) and 1080p (FHDTV 2D & 3D)
• Supports 7.1-channel surround

2D Resolution Capability

• 480i, 480p, 720p, 720p-3D, 1080i, 1080p and 1080p-3D

3D Format Support

• Frame packing
• Side by side
• Top and bottom

Audio Support

• 2 to 8ch LPCM @32 KHz ~ 96 KHz
• 2ch LPCM @176.4 KHz and 192 KHz
• 2 to 6ch Dolby Digital & DTS @32 KHz ~ 48 KHz

Hardware Specifications

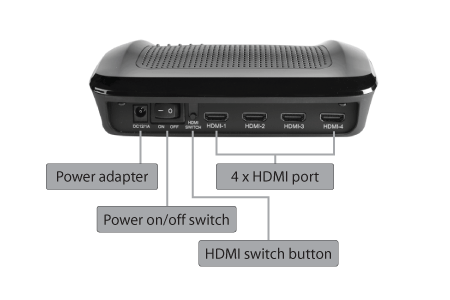

Transmitter

• 32 antenna array with auto tracing
• A/V input: four HDMI 1.4a ports
• Button/Switch
  • HDMI switch button
  • Power on/off switch
• LED indicators
  • Link/Power indicator
            - No connection: blinking
            - Connection associated: steady

  • HDMI 1 ~ 4
• Power supply
  • Input: 120 V ~ 240 V AC
  • Output: 12 V DC, 1.0 A
• Power consumption
  • Full operation: 9 watt max.
  • Power-saving mode: 4.0 watt max.

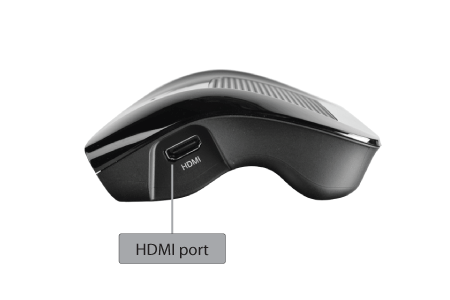

Receiver

• 32 antenna array with auto tracing
• A/V output: one HDMI 1.4a port
• Switch
  • Power on/off switch
• LED indicators
  • Link/Power indicator
            - No connection: blinking
            - Connection associated: steady
• Power supply
  • Input: 120 V ~ 240 V AC
  • Output: 5 V DC, 2.0 A
• Power consumption
  • Full operation: 6.5 watt max.
  • Power-saving mode: 2.6 watt max.

Remote Control

• Buttons
  • Four HDMI switch buttons
  • Power-saving mode button

Physical Specifications

• Item dimensions (WxDxH):
  • Transmitter: 181.1 x 156.1 x 57.6 mm (7.13” x 6.14” x 2.28”)
  • Receiver: 148.1 x 118.6 x 44.7 mm (5.83” x 4.69” x 1.77”)
• Item weight:
  • Transmitter: 372 g (0.82 lb.)
  • Receiver: 232 g (0.51 lb.)
  • Packing dimensions (WxDxH): 280 x 173 x 210 mm (11.02” x 6.81” x 8.27”)
  • Packing weight : 1,544 g (3.4 lb.)

Environmental Specifications

• Operating environment:
  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10% to 90% (Non-condensing)
• Storage environment:
  • Temperature: -20°C to 70°C (-4°F to 158°F)
  • Humidity: 5% to 90% (Non-condensing)

Certification

• Safety: CE LVD
• EMC: CE, FCC, IC
• Others: WIHD^TM, HDMI

Package Contents

• Wireless HDMI kit (Transmitter & Receiver)
• Two HDMI cables
• Remote control (Batteries included)
• Wallmount bracket (Screws included)
• Power adapters
• Quick start guide
• Warranty card
