Wirless Standard

  • 802.11 b/g/n

Wireless Transfer Rate

  • Receive: 300 Mbps*
  • Transmit: 300 Mbps*

Wireless Security

  • 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

WLAN Features

  • 4-in-1 operation modes, including access point, WLAN client, universal repeater, and WDS
  • Wi-Fi Protected Setup (WPS)
  • Wi-Fi Multimedia (WMM)
  • Wireless scheduling
  • Wireless output power management
  • Auto channel selection
  • MAC address filtering

System Management

  • HTTP
  • Diagnostic logs
  • Online firmware upgrade
  • LAN: Two 10/100 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
  • LED indicator:
    • Power
    • LAN (1 - 2)
    • Wireless
    • WPS
  • Antenna: Two 5 dBi detachable antennas
  • Switch: AP/Universal Repeater/Client mode switch for setting up operation mode
  • Button/Switch:
    • Wireless on/off button
    • LED light on/off button
    • WPS button
    • Reset button
  • Power rating: 12 V DC, 1 A
  • Power consumption: 8 watt max.
  • Front Panel

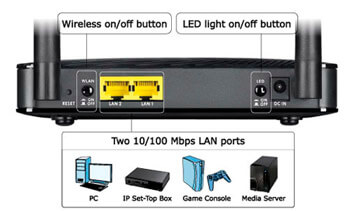

  • Rear Panel

  • Item dimensions (W x D x H): 159 x 111 x 23 mm (6.26” x 4.37” x 0.91”)
  • Item weight: 255 g (0.56 lb.)
  • Packing dimensions (W x D x H): 247 x 61 x 155 mm (9.72” x 2.4” x 6.1”)
  • Packing weight: 650 g (1.44 lb.)
  • Operating Environment
    • Temperature: 0°C to 40°C (32°F to 104°F)
    • Humidity: 10% to 90% (Non-condensing)
  • Storage Environment
    • Temperature: -30°C to 70°C (-22°F to 158°F)
    • Humidity: 10% to 95% (Non-condensing)

  • Safety: CE LVD
  • EMC: CE, FCC
  • Wireless Access Point
  • Two detachable antennas
  • Power adapter
  • Ethernet cable
  • Quick start guide
  • Support CD
  • Warranty card

*The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.
