System Specifications

Standard

• Compliant with IEEE 1901 with data transfer rate of up to 500 Mbps*
• Compatible with HomePlug AV standard

Access Methods

• CSMA/CA channel-access schemes

Range

• Max. range up to 300 meters over power line

Power Saving Mode

• If link is inactive for a period (default setting: 60 seconds)

Security

• 128-bit AES encryption

Quality of Service (QoS)

• ToS
• Support up to 4-level type QoS
• Support up to 8-level VLAN priority field

Frequency Band

• 2 MHz ~ 67.5 MHz

Dynamic Neighbor Network Support

IGMP

• IGMP snooping for multicast to multiple unicast mapping

System Requirements

• Deployment requirements :
  • Devices with 10/100 or 10/100/1000 Mbps Ethernet port
  • Operates system independent
• Utility software OS support:
  • Microsoft Windows XP/Vista/7

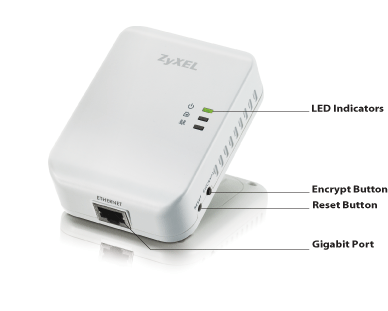

Hardware Specifications

• Ethernet interface: one 10/100/1000 Mbps RJ-45 connector with auto MDI/MDIX support
• LED indicators:
  • Power on/off
  • Powerline link/quality
  - Green: Best, Amber: Better, Red: Good
  • Ethernet link/activity
• Buttons:
  • Encrypt button
  • Reset button
• Power rating: 100-240 V AC, 50/60 Hz
• Power consumption:
  • Full operation: 5 watt max.
  • Power-saving mode: 1 watt max.
• Plug type:
  • EU type: Two pins for EU 220 V - 230 V
  • US type: Two pins for US 120 V
  • UK type: Three pins for UK 240 V

Physical Specifications

• Item dimensions (WxDxH): 71 x 65 x 95 mm (2.79” x 2.56” x 3.74”)
• Item weight: 134 g (0.29 lb.)
• Packing dimensions (WxDxH): 134 x 94 x 178 mm (5.27” x 3.7”x 7.01”)
• Packing weight:
  • Single pack: 418 g (0.91 lb.)
  • Starter kit pack: 551 g (1.21 lb.)

Environmental Specifications

• Operating environment:
  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 20% to 90% (Non-condensing)
• Storage environment:
  • Temperature: -20°C to 70°C (-4°F to 158°F)
  • Humidity: 20% ~ 95% (Non-condensing)

Certification

• Safety:CE-LVD, UL/cUL
• EMC: CE, FCC

Package Contents

• Powerline Ethernet Adapter
• Ethernet cable
• Quick start guide
• Support CD
• Warranty card

* The theoretical maximum channel data transfer rate is derived from IEEE 1901 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, quality of electrical installation and other adverse conditions.
